My 240x128 graphical LCD



It's a Powertip PG-240128-A parallel drived, white on blue, graphical 240x128 pixels LCD, with a Toshiba T6963c controller, and LED backlighted.

I bought it online from ModwareHouse for 125 Euro (about 140US$-220AUD$) without shipping and handling costs.

(The datasheet is available at http://www.powertipusa.com/pdf/pg240128a.pdf)



I added four 10mm standoffs to the PCB for mounting the LCD onto a plexiglass stand



The connection schematic (in Acrobat PDF format) is based on this one, but I modified it with a Centronics 36 pole female connector instead of the original DB25:


Component list:

I soldered K1, the 20 pin male connector directly to the back of the LCD PCB (pin 1 to 20)

glcd/pict0013.jpg

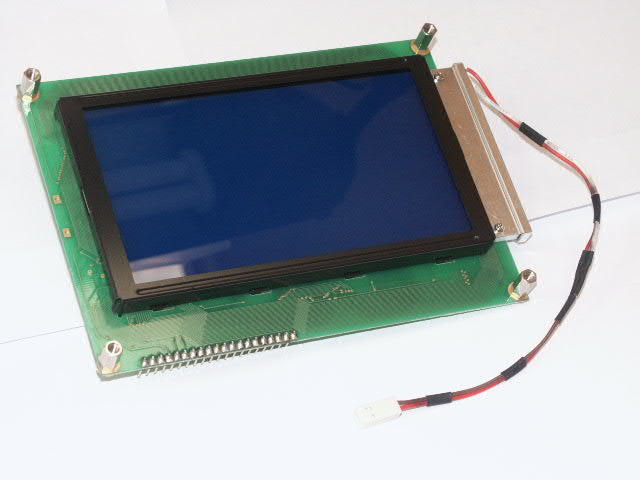

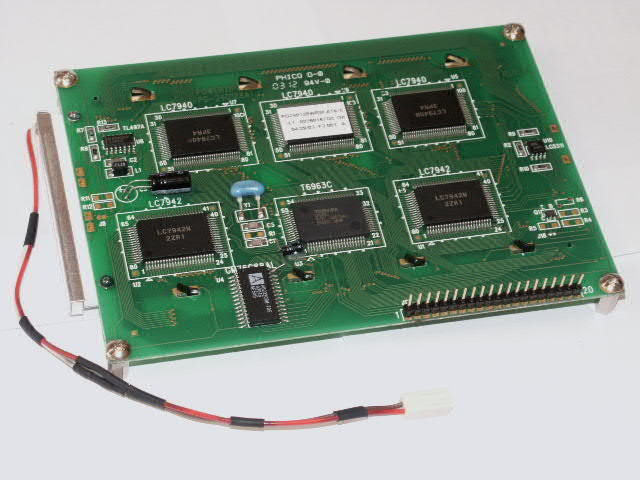

Rear view
glcd/pict0014.jpg

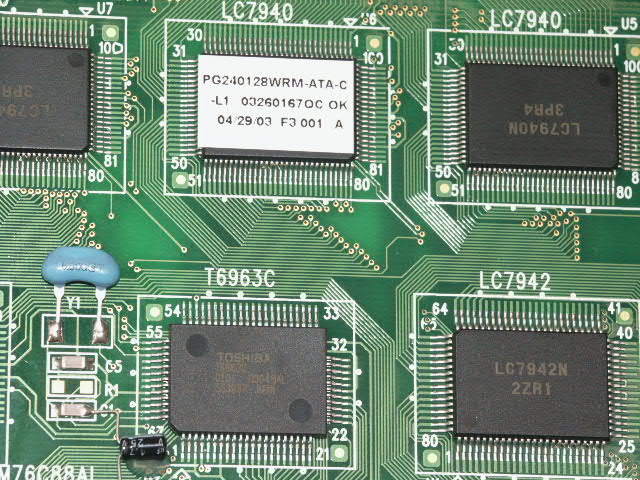

Detail of the T6963c controller

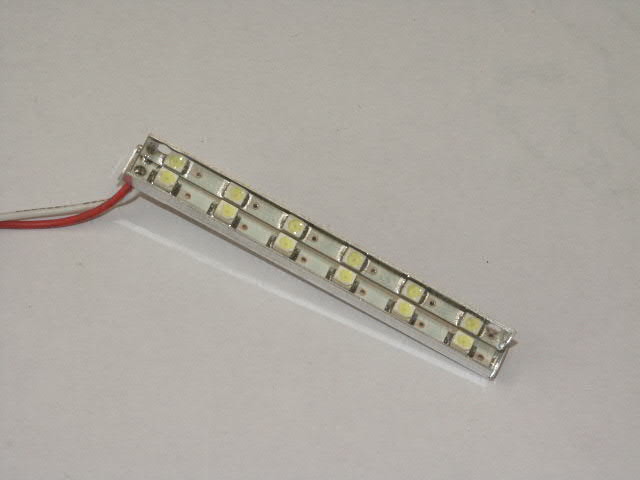

The edge array backlight consists of six parallel wired white LEDs and is specified for 120mA @ Uf=3.5V shining through a diffusor plate behind the LCD itself

The backlight LEDs



To connect the LCD to the parallel port I wanted something clean, as well as for the contrast and luminosity settings. Not to forget a reset switch and the +5V connection. So I developped a little PCB:

glcd/glcdpcb.jpg

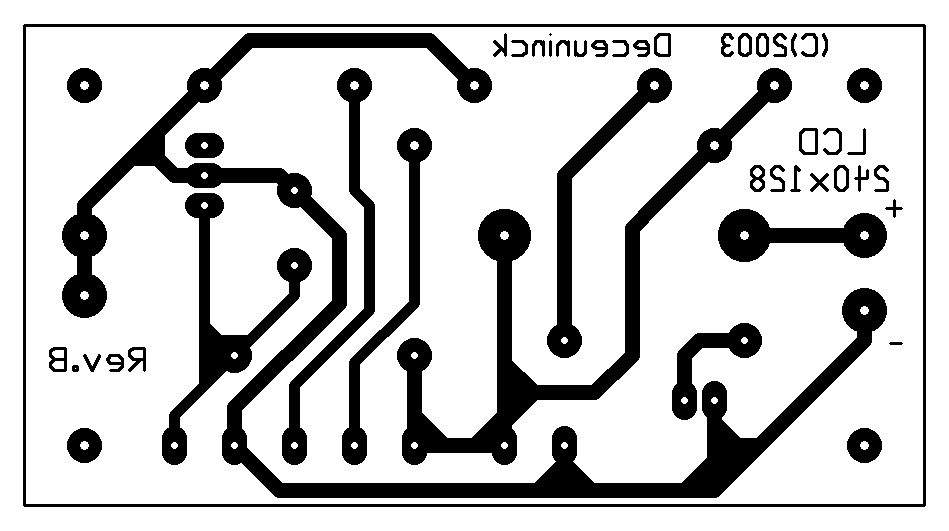

PCB layout
glcd/glcdcomp.jpg

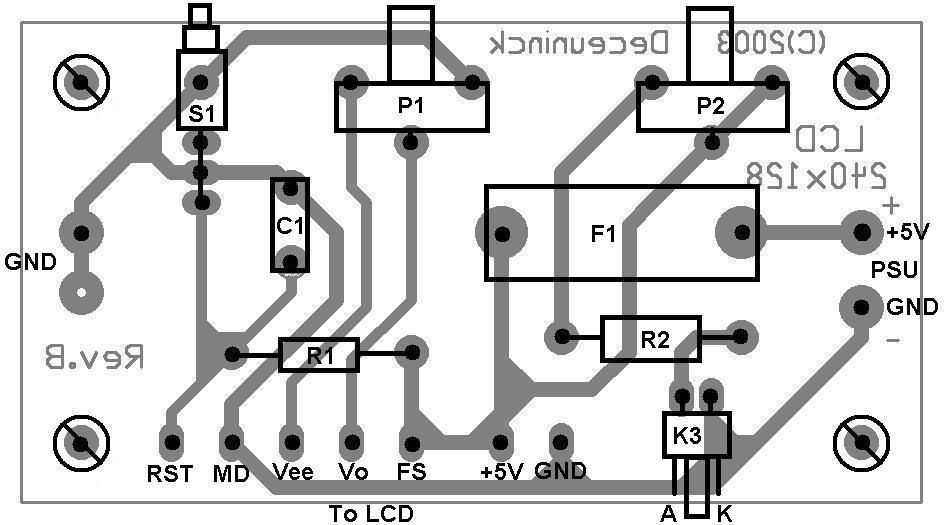

Component layout



glcd/pict0006.jpg glcd/pict0007.jpg glcd/pict0008.jpg

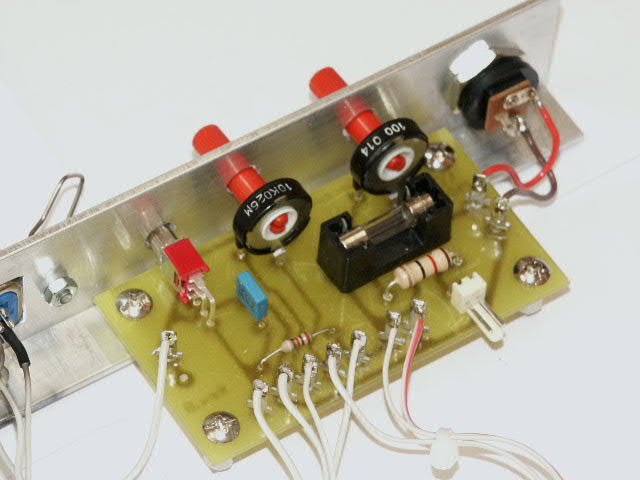

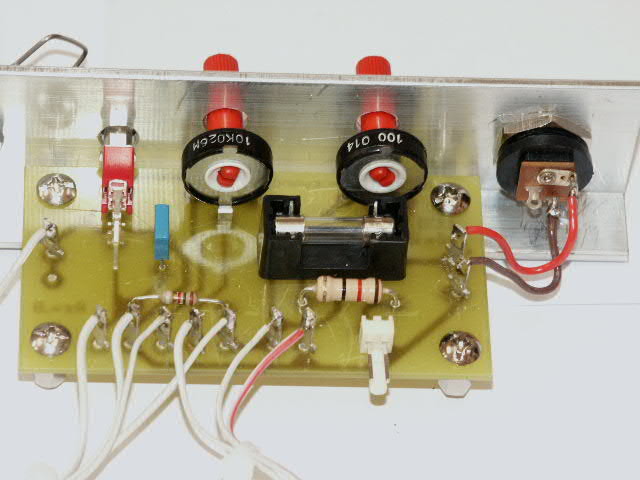

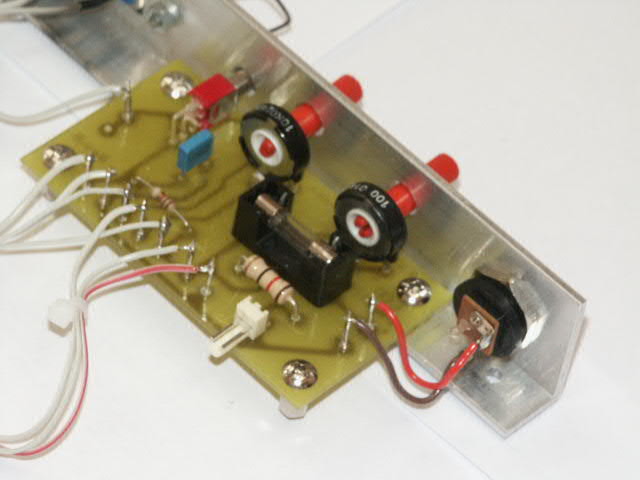

Rear views of the mounted PCB:

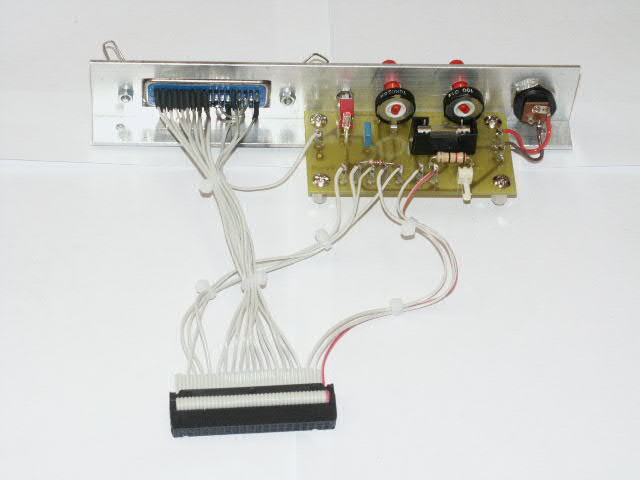

From left to right: Reset switch, contrast, luminosity, +5V-connection. Actually power supply is done via an external ZIP100 PSU (exactly +5V), but afterwards I want to connect it to the Enermax +5V rail in my PC-70. Therefore I decided to include a 0.5AT fuse & fuseholder onto the PCB.

glcd/pict0005.jpg glcd/pict0010.jpg

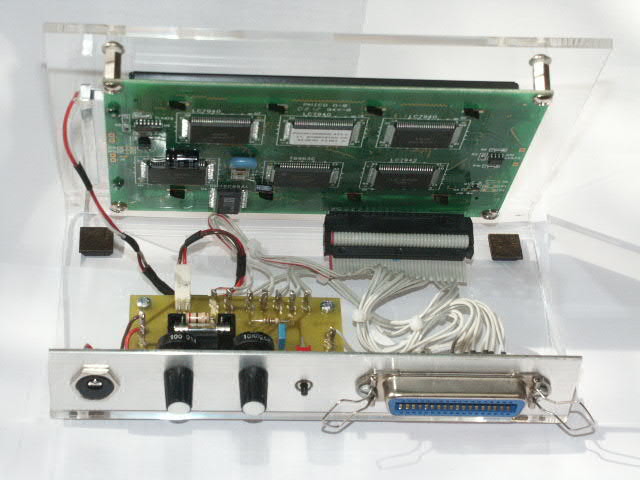

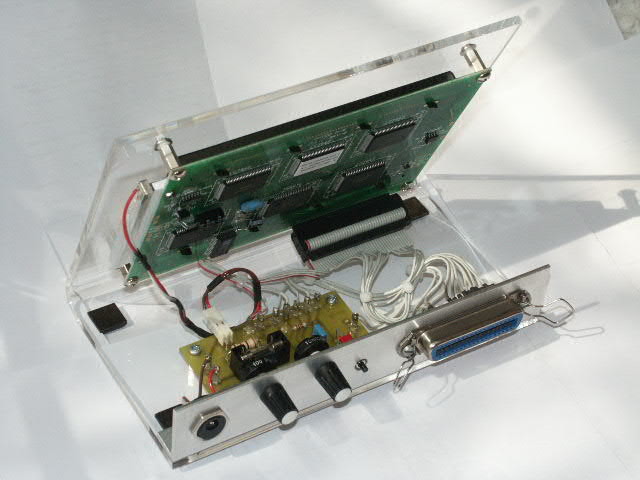

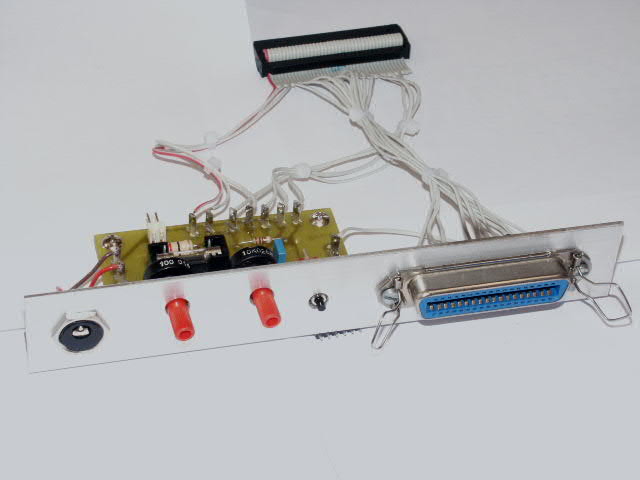

For the LPT1 connection I used a 36-pole female Centronics connector, so I was able to use a standard printer cable. The whole thing is mounted on an alu profile of 20x30x2 mm that will be fixed on a plexi standard. For the cable to the LCD I used a "cannibalized" 40-pin IDE cable. The LCD has 20 pins, so I used only the lower row of the 40-pin connector (1 wire on 2).



As principal software to drive the LCD I use Mr. ChronoM's PowerLCD 2.02 (also a guy from Belgium!) available online for 19.99 Euro (about 22US$-35AUD$). This package is specifically developped for use with graphical LCD's with a T6963c or SED1330 controller.

Some pics in action (PowerLCD runs here on my laptop):

glcd/pict0023.jpg

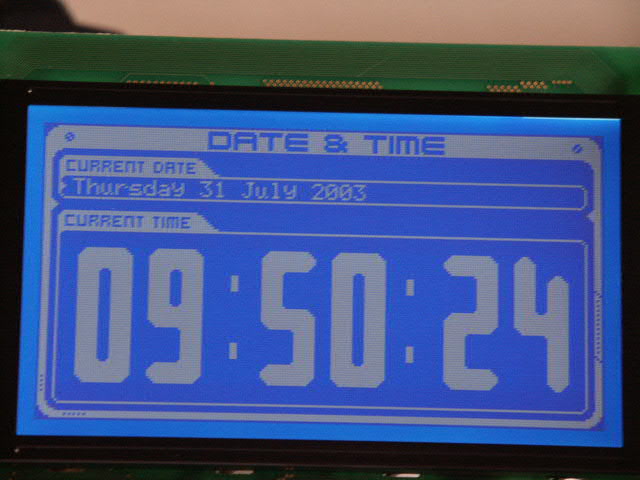

Big Clock
glcd/pict0024.jpg

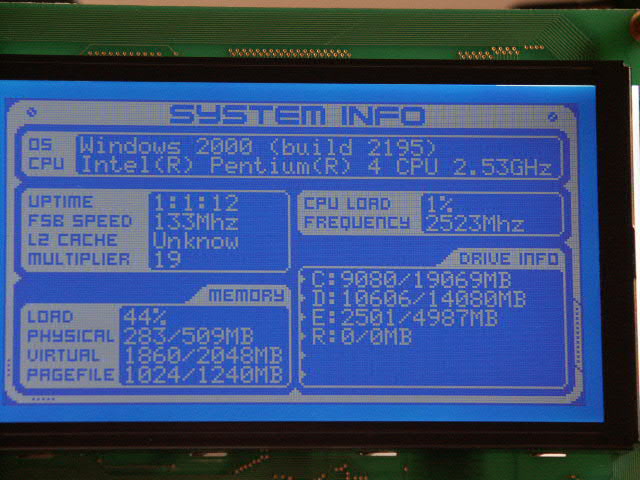

System Info



glcd/pict0025.jpg

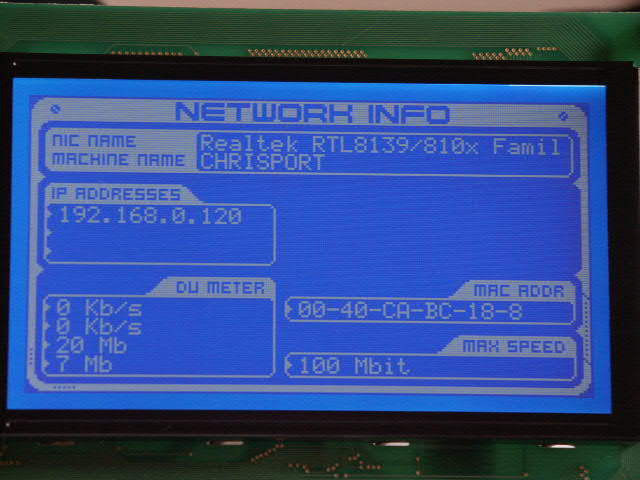

Network Info
glcd/pict0027.jpg

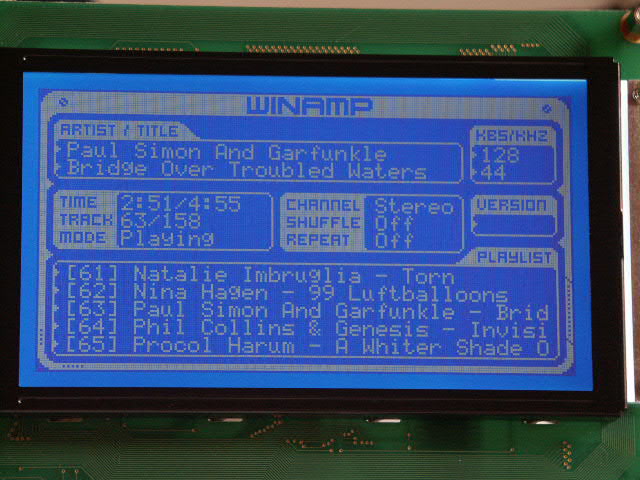

Winamp Info



glcd/pict0036.jpg

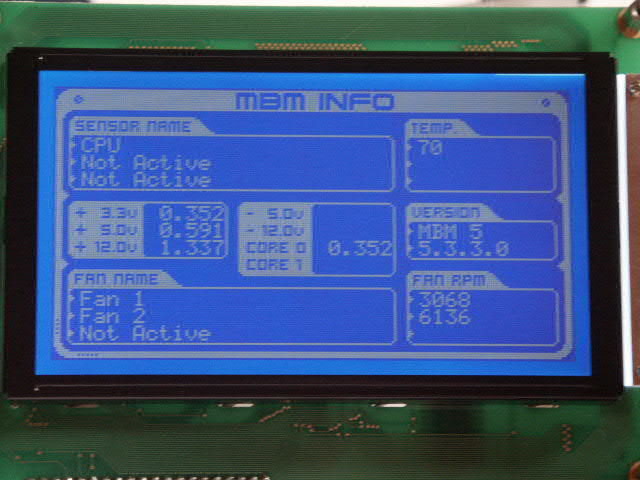

MBM 5.3.3 doesn't recognize correctly the chipset of my laptop, so most sensors are missing or wrong...
glcd/pict0037.jpg

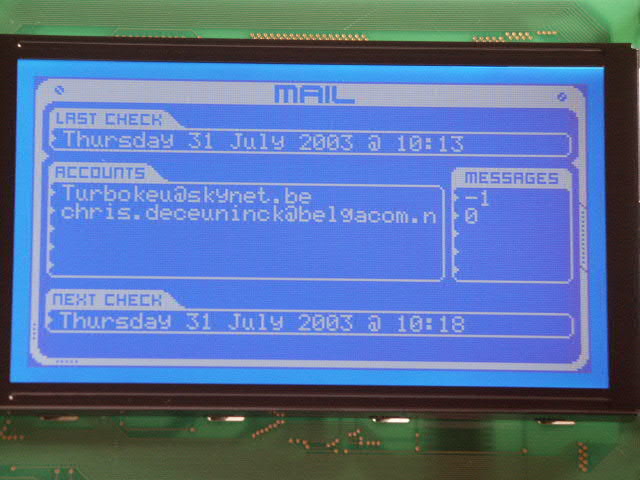

Eh, normally it should indicate the number of mails at Skynet as "31"...



glcd/pict0034.jpg

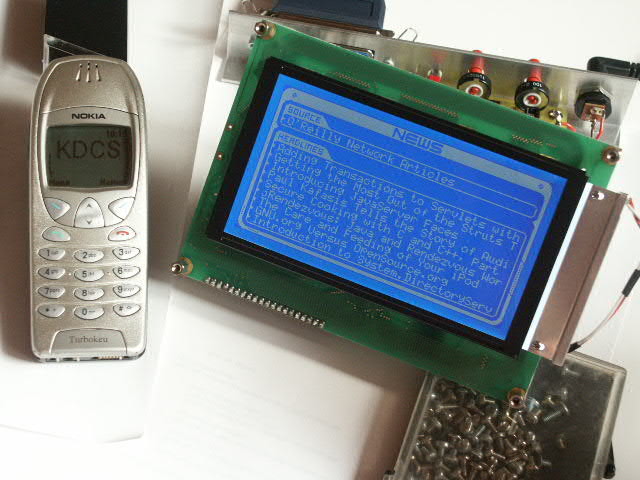

Beside my Nokia 6210. On this pic you can see the headlines at O'Reilly Network (via Internet).

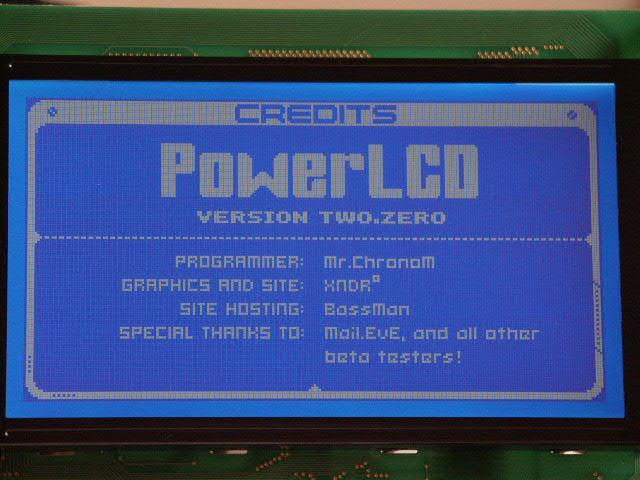

glcd/pict0029.jpg
That's all folks!

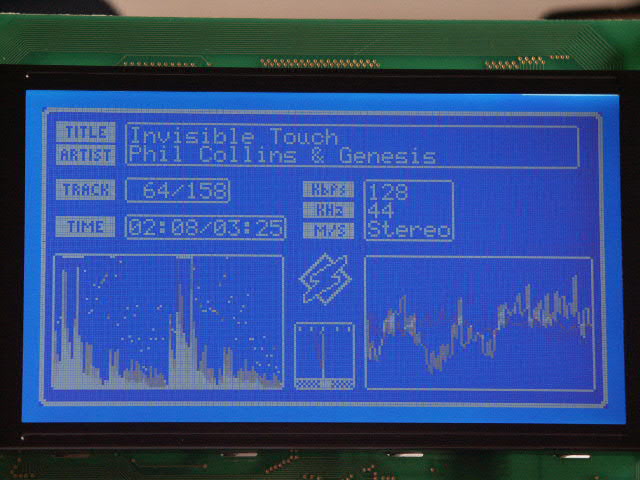

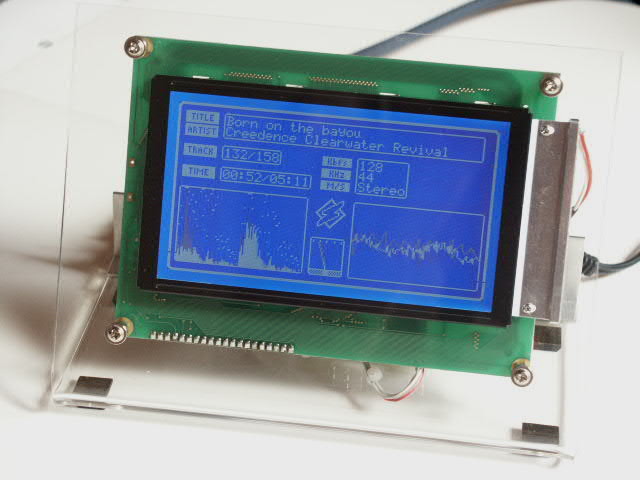

This is the LiquidMP3 0.9.3 beta plugin for Winamp, with spectrumanalyzer, VU-meter and oscilloscope:

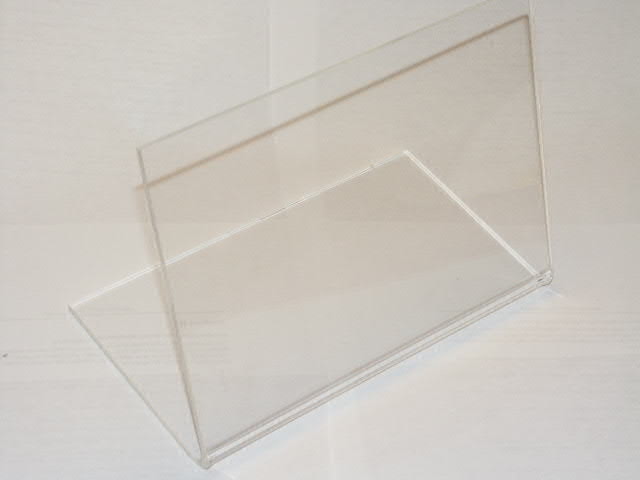

After picking up the plexiglass stand at the store, cut to dimension and folded at an angle of 70: I just have to drill the neeeded holes...

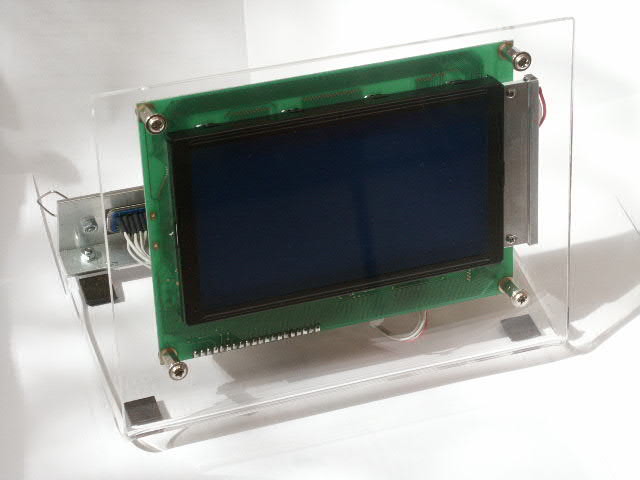

LCD is now completely mounted and functional. Actually the wiring and the LCD PCB are still visible. As soon as I have cut the window in my PC-70 I will recuperate some 1mm thick brushed alu, and with that I will make a framework around the LCD with an opening for the viewable area:

glcd/pict0041.jpg glcd/pict0044.jpg

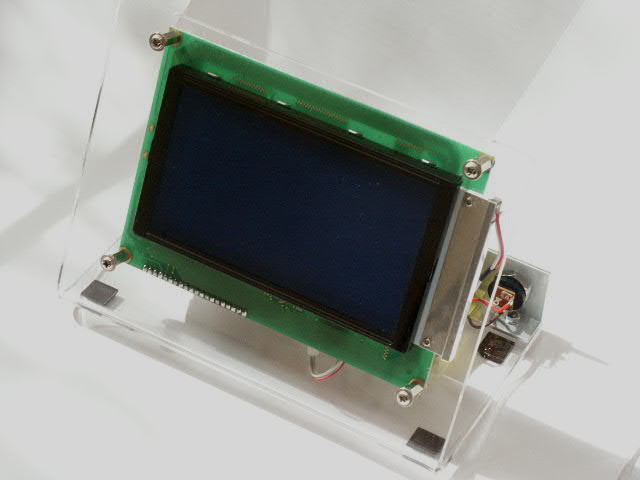

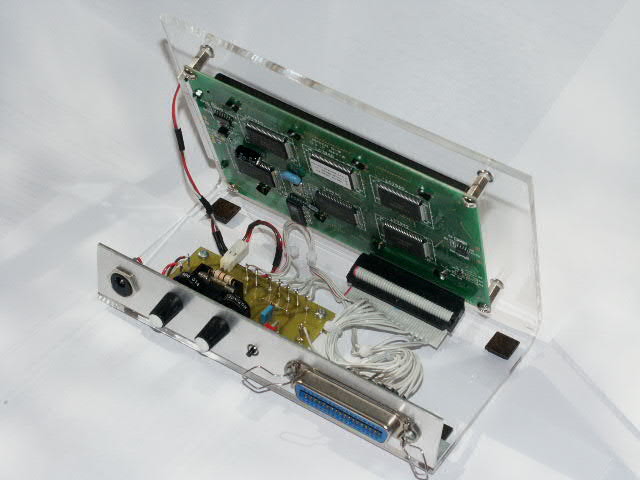

On the base all screws are sunk. Four adhesive rubber feet keep the whole thing stable onto my desk:

glcd/pict0049.jpg glcd/pict0051.jpg



glcd/pict0052.jpg glcd/pict0054.jpg



glcd/pict0062.jpg glcd/pict0063.jpg

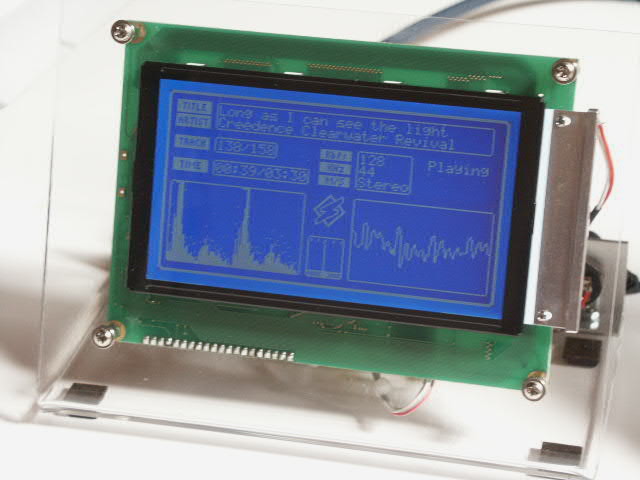

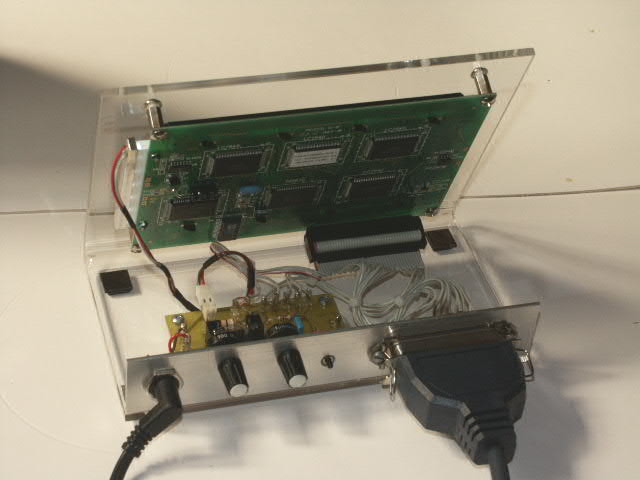

Printer cable and power supply connected:




The following Picture is taken at a resolution of 2560x1920 pixels, standard compression (file size is about 350Kb)

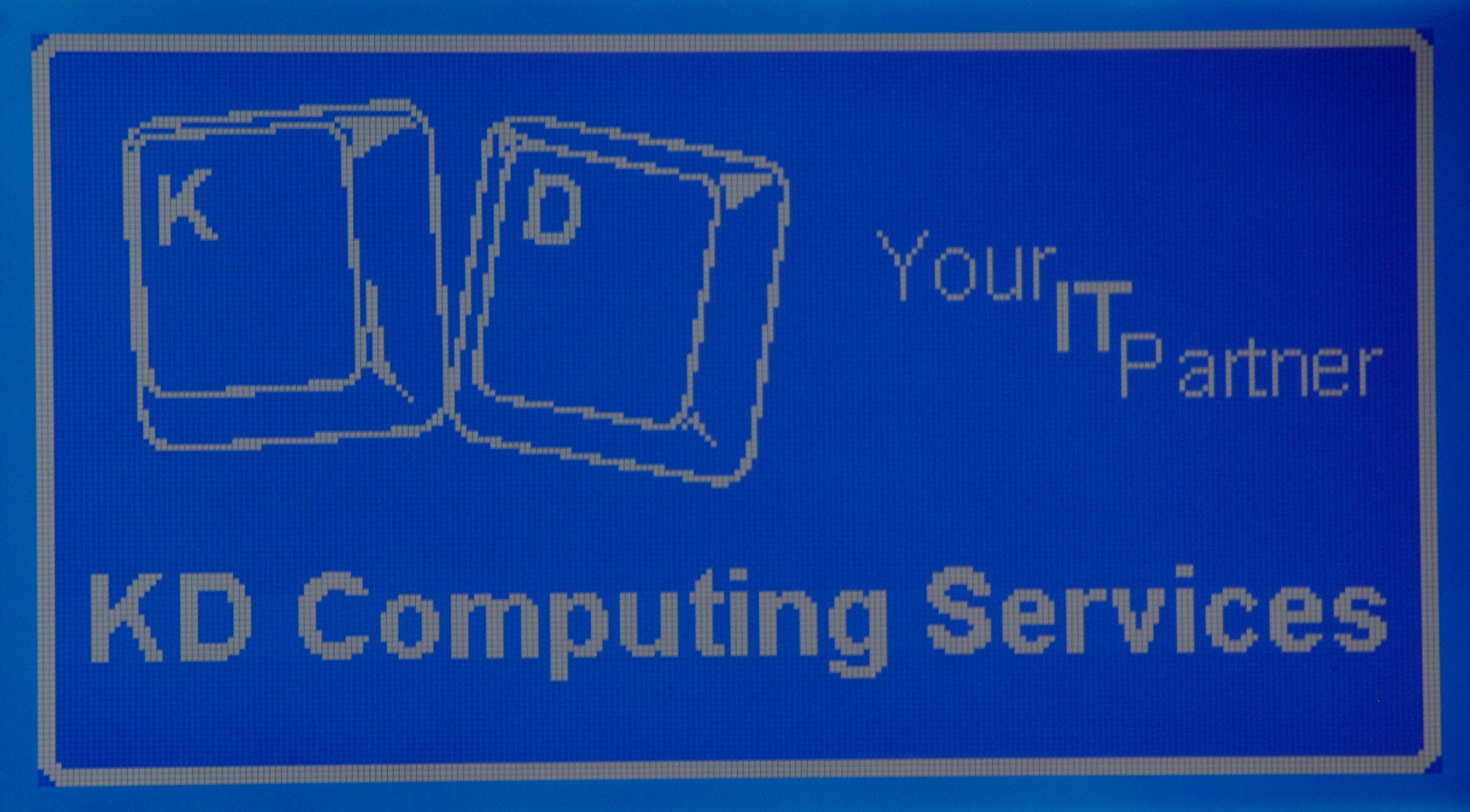

My company's logo

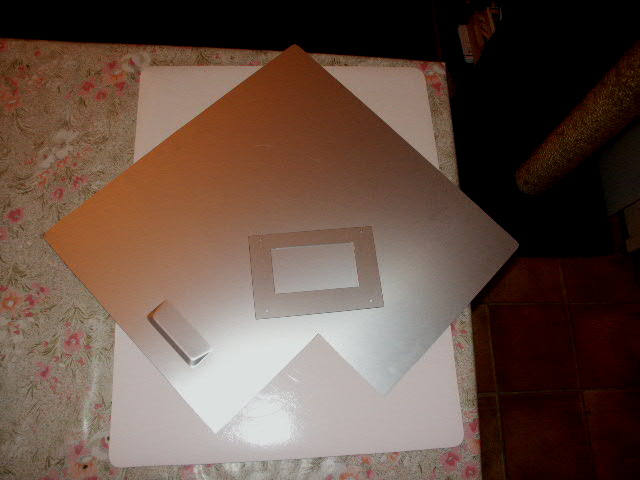

OK, finally cut my Lian PC-70 window, used the resting alu to cut the frame for my LCD: :

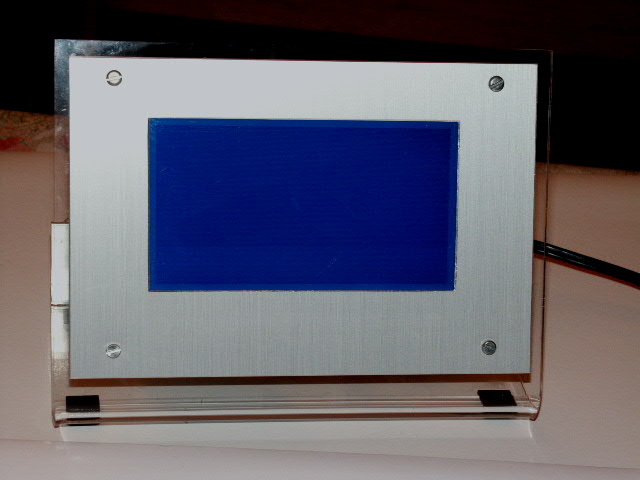

After the finishing touch (filing, sanding) here's the result:

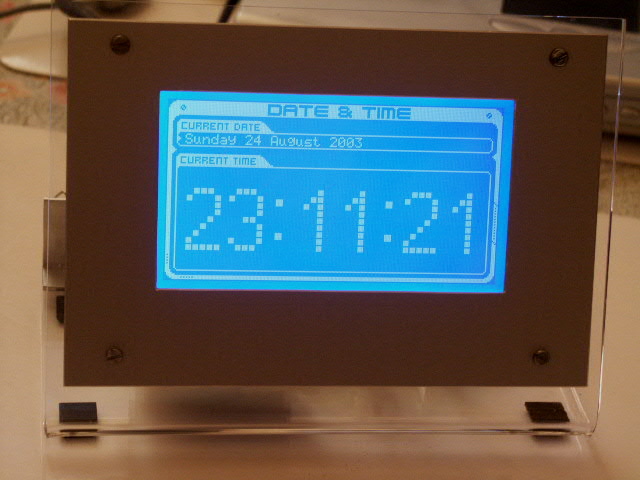

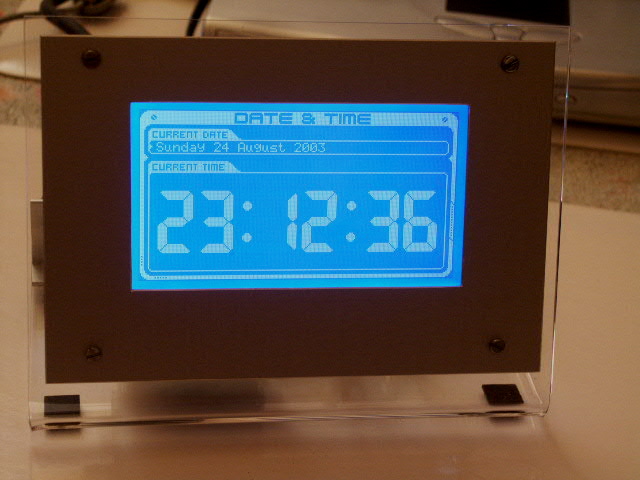

Again, some pics with the frame mounted: (In the meanwhile I made some skins for PowerLCD)

glcd/pict0089.jpg glcd/pict0090.jpg



Just preordered a white on blue LED backlighted 320x240 pixel LCD with a SED1335 controller from ModwareHouse. Can't wait to start it all over again...
