My watercooled
Lian Li PC-70 project
Page 1

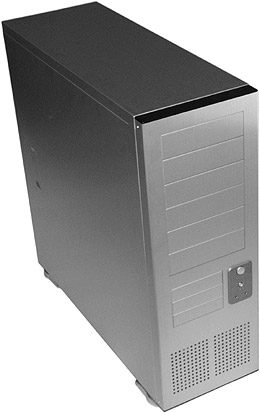

Based on this beautifull Lian
Li PC-70 USB aluminium case...
Note: the picture is the PC-70 without frontal USB
I don't have pictures
of the beginning of this project because I didn't own a digicam at that time...
Except for
this case I bought also following parts:
- Enermax EG-651P 550W ATX Power Supply
- BeCooling Aquacoil II radiator
with 1/2" connections
- Swiftech MCW462 waterblock (later
replaced by a DD Maze 3 acrylic topped waterblock)
- Panasonic L1A 69CFM-120mm Fan
- Sicce Idra 1200 liter/hour waterpump
(later replaced by an Eheim 1250)
- Swissflow SF800 electronic flowsensor
- Seetron SGX-120L 120x32 pixel
serial graphics LCD
- 1/2" silicone hose (later
replaced by Tygon R-3603)
- 2x Eheim 3/8" taps
- 1x Eheim 1/2" tap
A lot later I bought also
following parts:
- Asus A7V333 main board with onboard Raid and sound
- MSI GeForce4 Ti-4400 128MB DDR VGAcard
- 2x 512MB Apacer PC2700 DDR 333MHz memory
- Danger Den GF4 waterblock
- 4x Antec blue tri-LED fans
- 2x Thermal Take blue memory cooling kits
- 2x 30cm UV CCFL's and invertors
- 1x 30cm blue CCFL and invertor
- Becooling blue dye lite
- 3m (10feet) of 1/2" R-3603 Tygon from DD and Becooling
Some pictures of above parts:

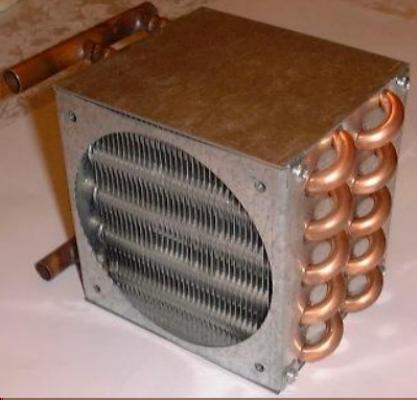

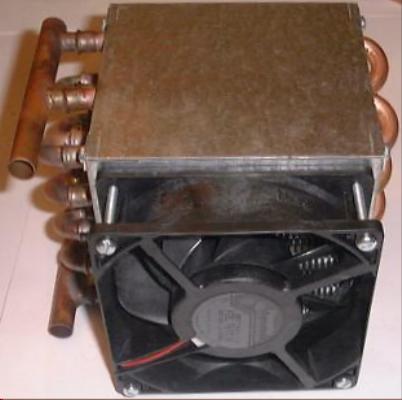

Aquacoil II
Cube radiators have
a bad reputation for creating pressure drop because they mostly consist of a
couple of meters of 3/8" copper tube. As I like them very much because
of there compactness I wanted the "least bad" of them. This is why
I choosed for BeCooling's AquaCoil II. You can clearly see it's made of two
separate 3/8" circuits in parallel connected to a 1/2" inlet and outlet.

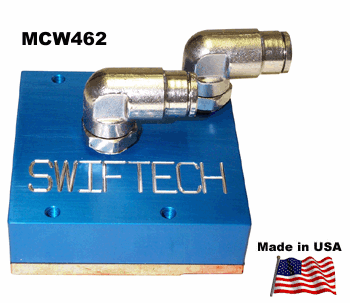

Swiftech blue anodized MCW462 waterblock:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
