My watercooled Lian Li PC-70 project

Page 6

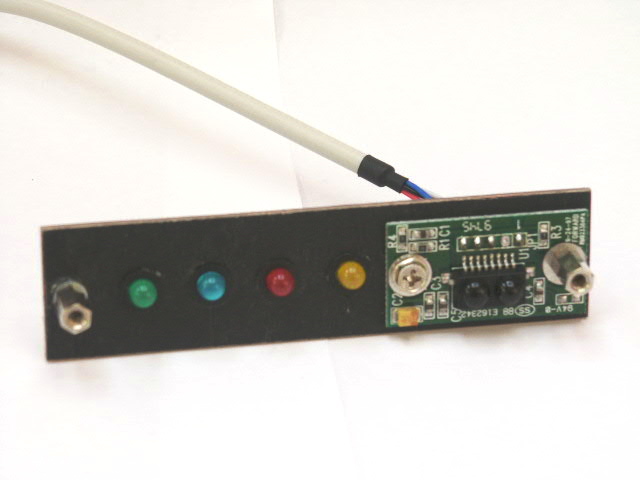

Front view of the LED-InfraRed PCB.

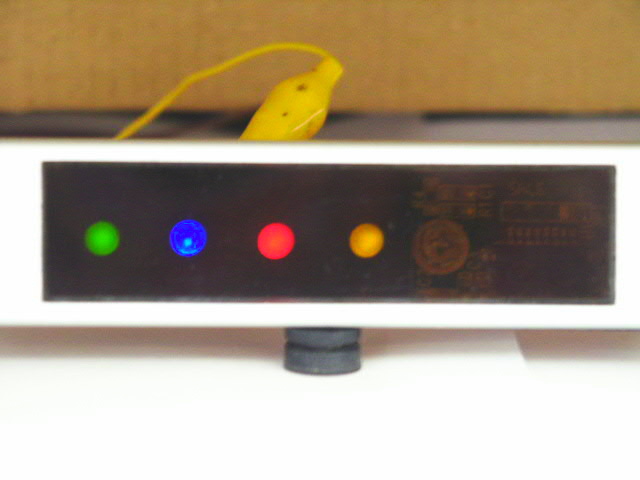

With the LEDS lit (It's a little cloudy but it was not easy to make those LED's clearly visible on the pic). Since I received some (constructive) critic about the fact that my radiator was sucking warm air from the case, I came to this mod.

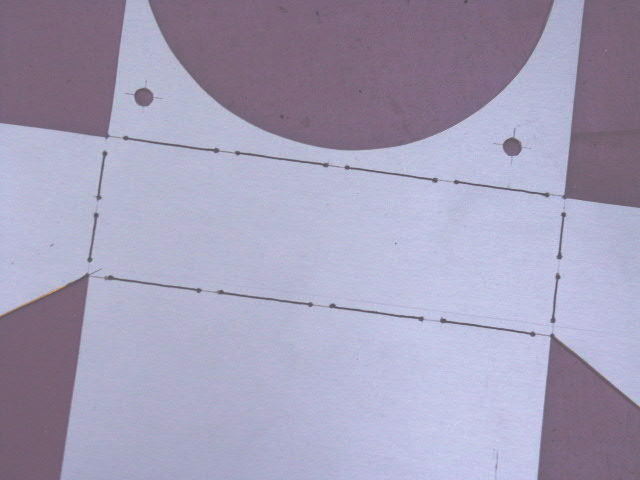

The new Radiator Intake Shroud, cut and filed.

Detail of the cuttings for the folding of the shroud.

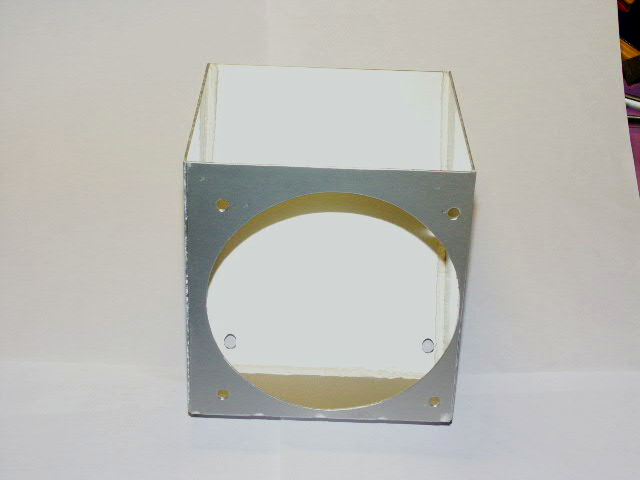

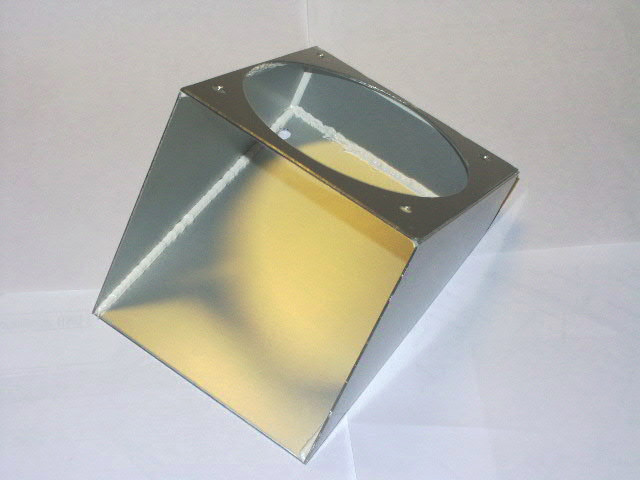

Intake shroud, folded and glued.

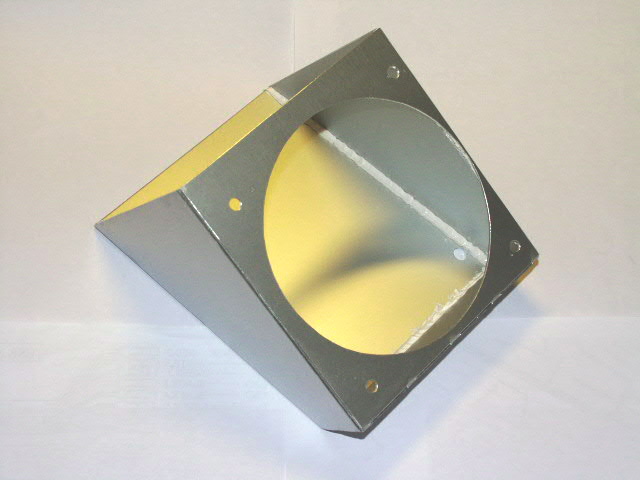

Idem.

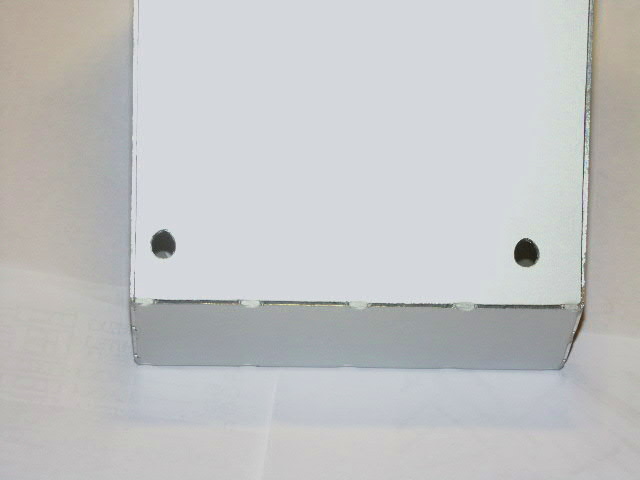

Detail of the two accessholes for the lower two screws.

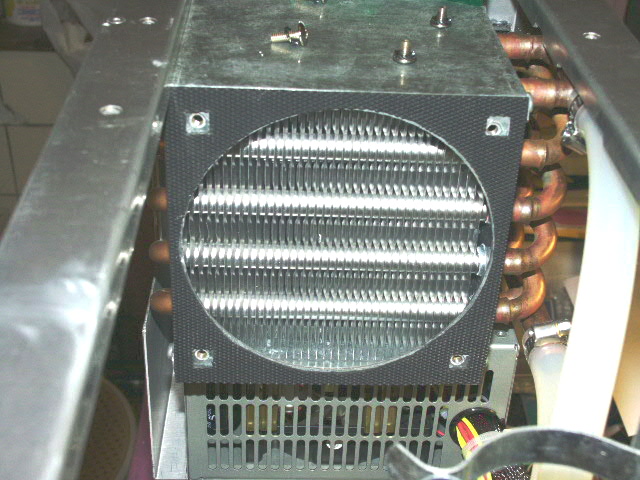

Rubber seal between radiator and shroud.

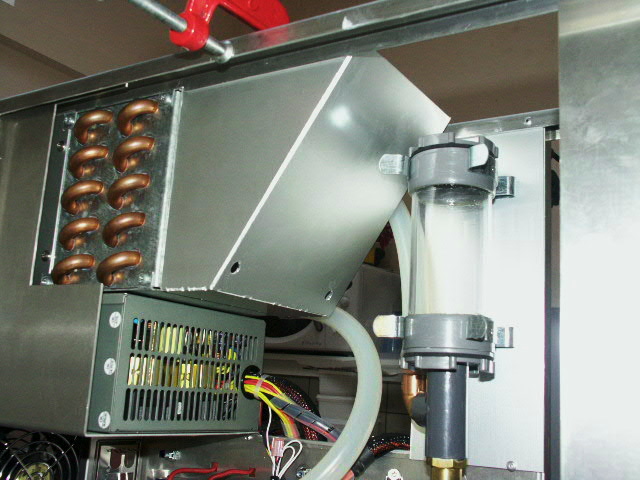

The shroud in place, awaiting for the glue to dry.

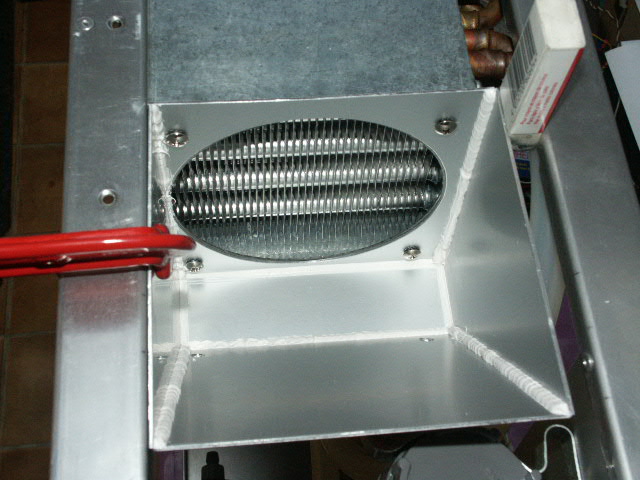

View from underneath.
