My watercooled Lian Li PC-70 project
Page 15

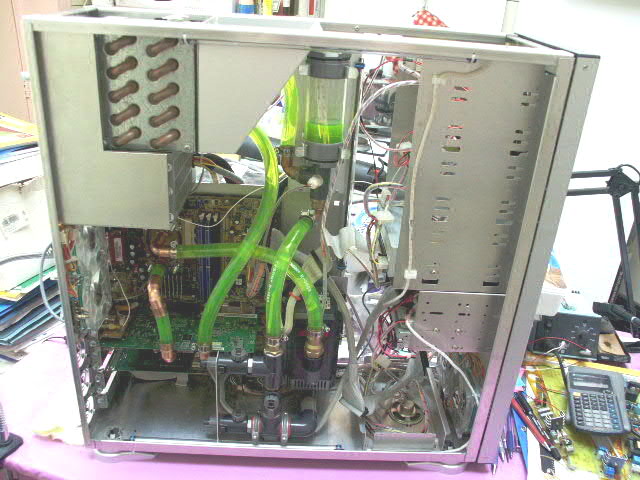

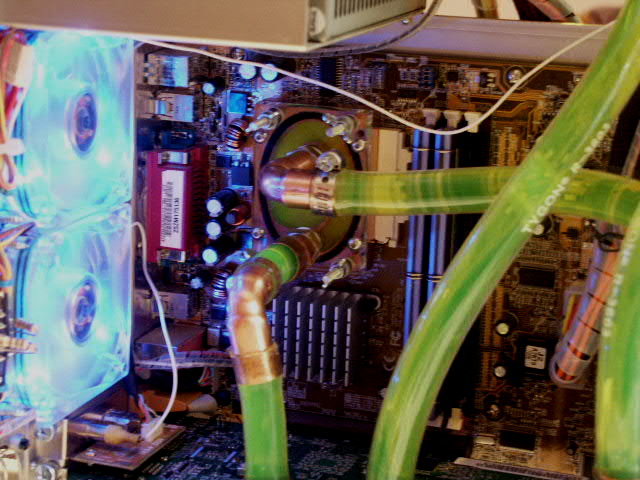

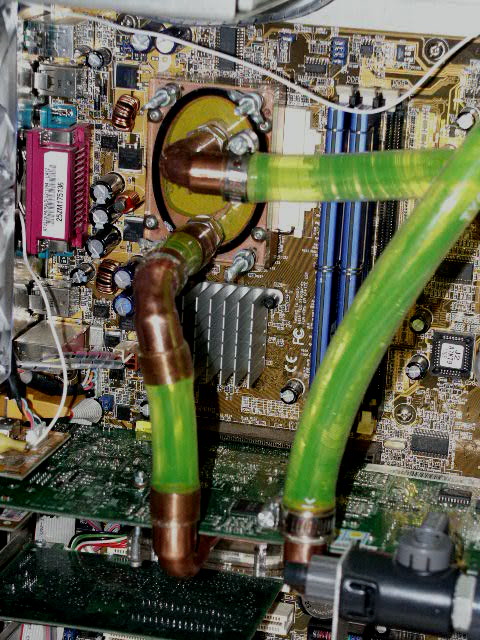

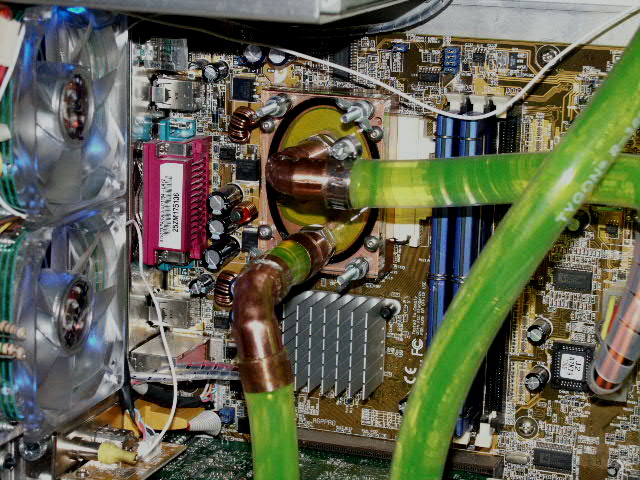

Now that the Maze3 block, my GF4400 and the Tygon
tubing is installed and everything is working great, I changed my mind again:
I ordered one of Cathar's Cascade blocks... It should arrive in a couple of
days.

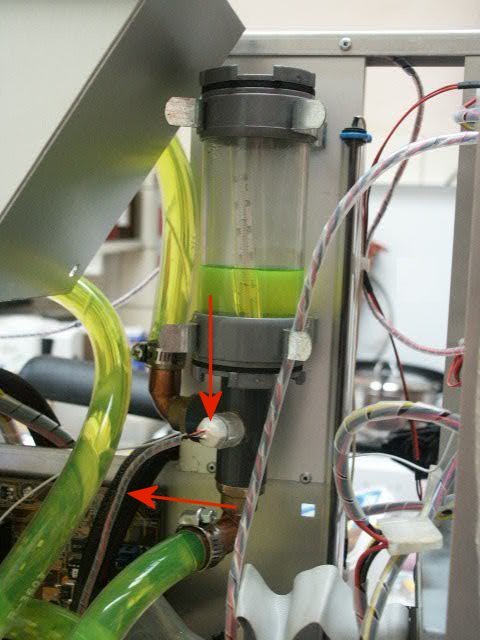

A close up of my airtrap:
The upper arrow indicates the location where I installed a 10K NTC resistor to
be able to measure the coolant temperature.
The lower arrow indicates the wiring from the NTC to the PWR_TMP connector on
the Asus A7V333 mobo.
The thermometer in the airtrap is there only for comparing the temps with the
NTC.

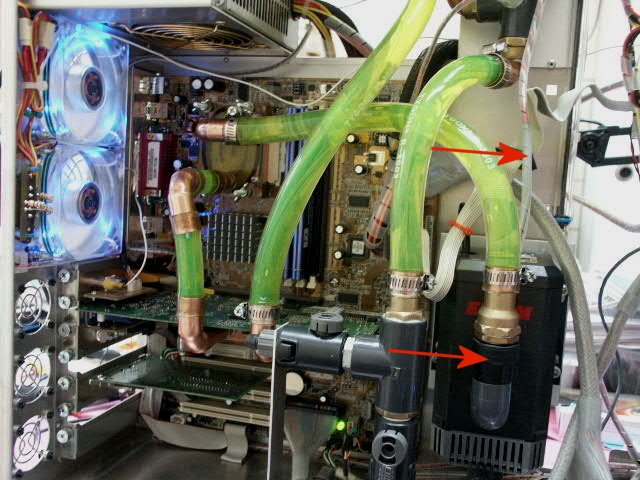

The lower arrow indicates the location of the
Swissflow flowsensor on the outlet of the Eheim 1250.
The upper arrow indicates the wiring from the Swissflow to my digital flowmeter
PCB.

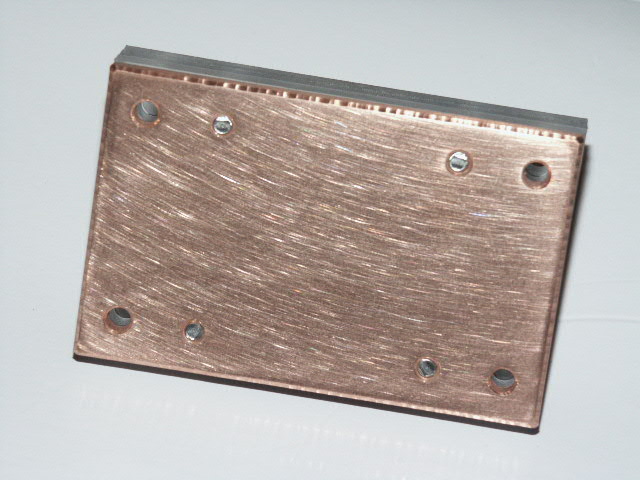

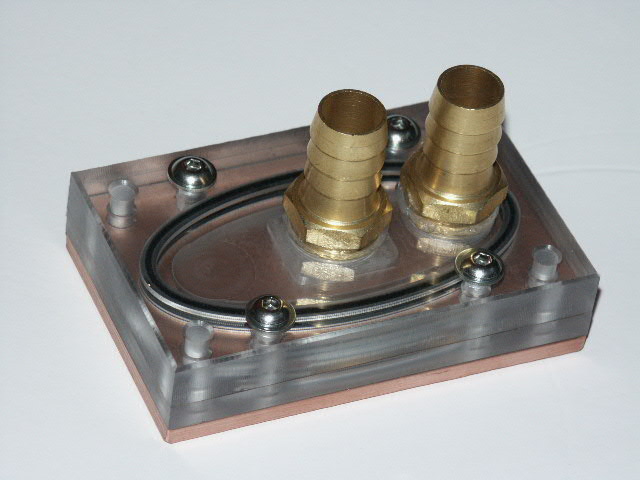

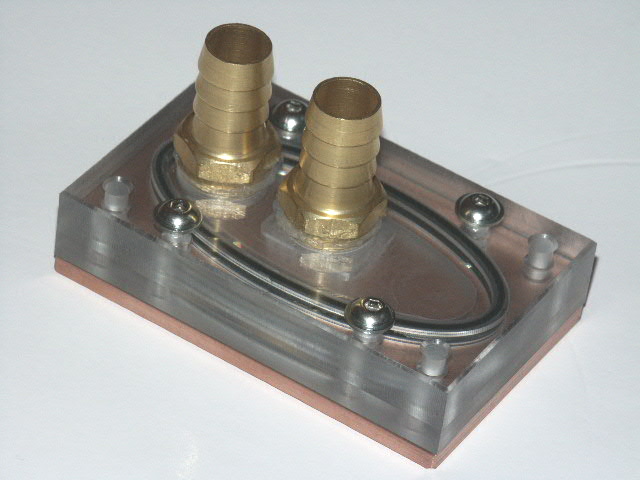

Here it is, my long awaited Cascade water
block...!!!
It's a beauty, a piece of craftmanship... Thanks Cathar!
