My watercooled Lian Li PC-70 project
Page 11

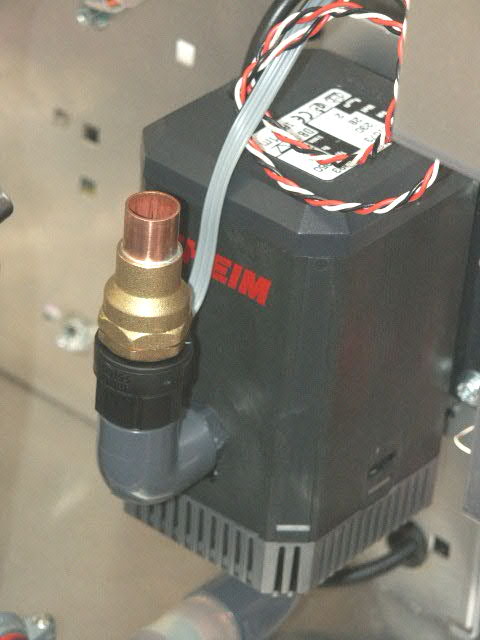

Since I had to include my Swissflow flowsensor
I decided to put it on the outlet of the Eheim. Input side of the Swissflow is screwed into the
20mm PVC turn, output side is connected to 15mm copper through a 3/8" to 1/2" and 1/2" to 15mm
adapter
Close-up

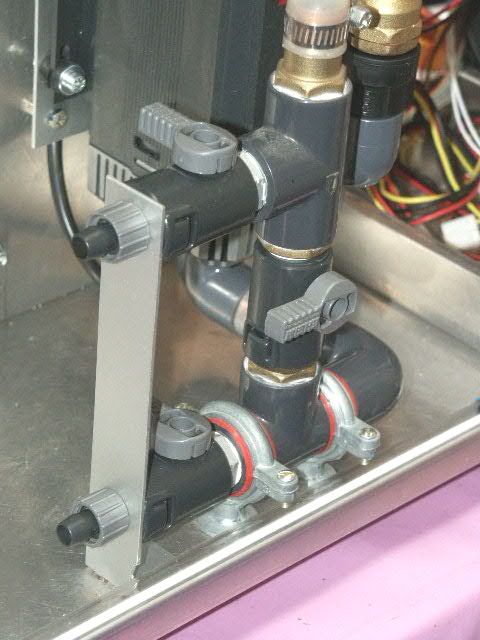

I made a little L-bracket to re-inforce the 3/8" taps

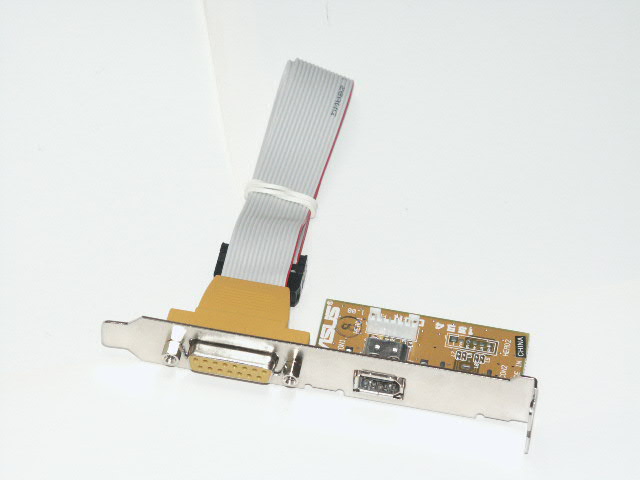

Modified bracket with Gameport and Firewire interface. Originally only the Firewire was present
on this bracket and a separate bracket was provided with the Gameport and 2 USB-ports. As I
don't need the USB-Ports (there are four of them on the front of the Lian Li PC-70), I added
the cut for the Gameport. At the right of the Firewire connector comes a 3.5mm jack to connect
my serial LCD to my COM4-port.

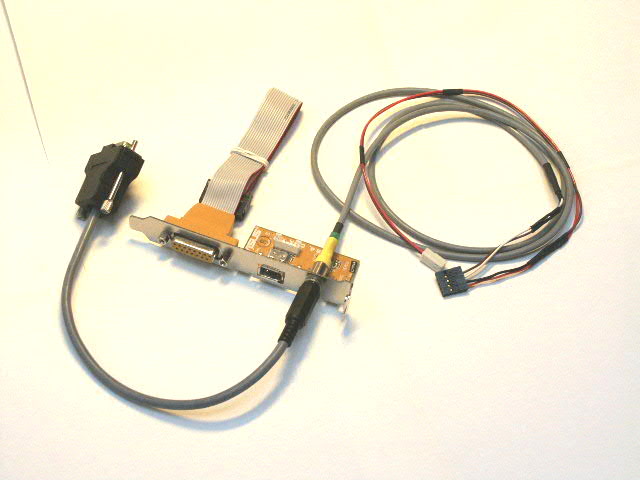

At the right of the Firewire connector the 3.5mm jack to connect my serial LCD to my COM4-port.

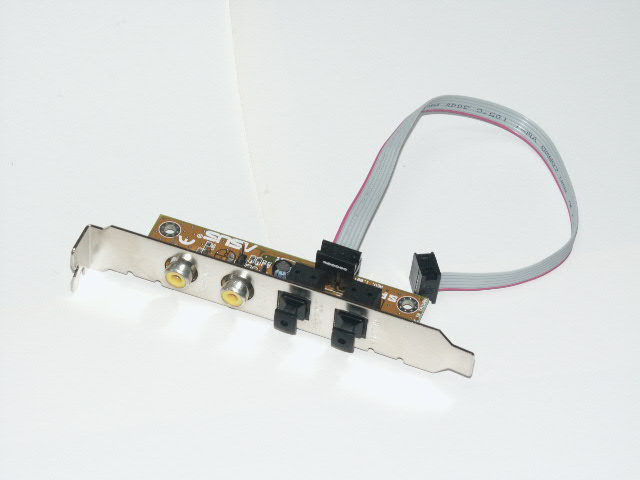

Wasn't delivered with the mobo, but needed it to connect the onboard 5.1 sound to my Dolby Digital
decoder: The digital S/PDIF interface (Coax in/out and Optical in/out) (about Euro 25.00)

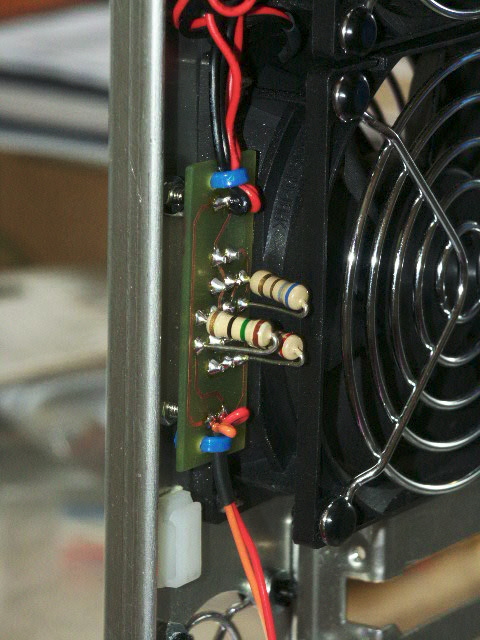

In the meanwhile I made a PCB for the 4-position rear fanregulator
Mounted in the back of the case
