My watercooled Lian Li PC-70 project

Page 14


My Seetron graphical LCD is finally connected and the blue LEDs for the voltage monitor arrived.

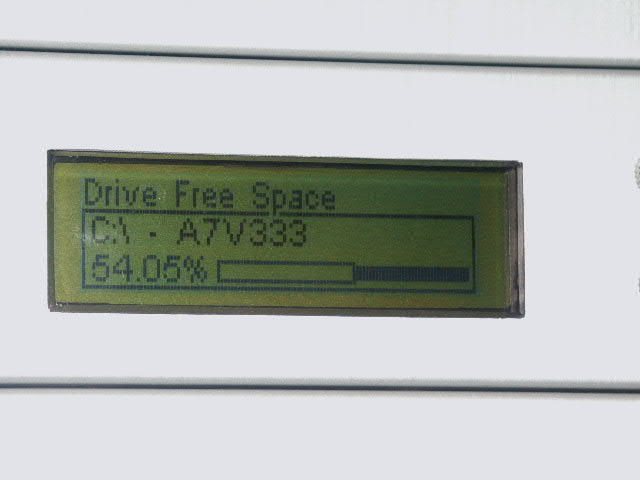

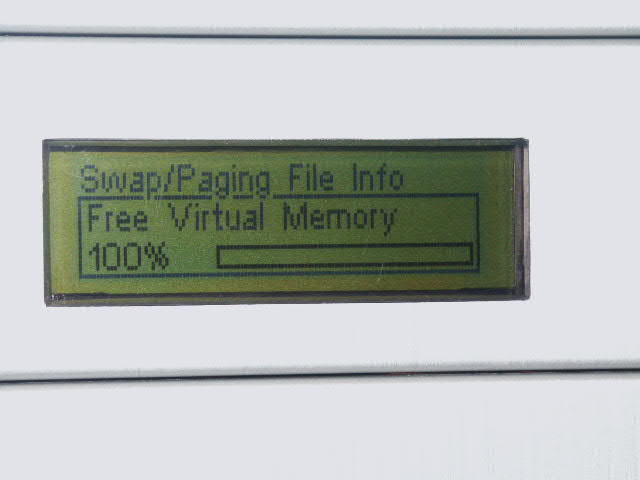

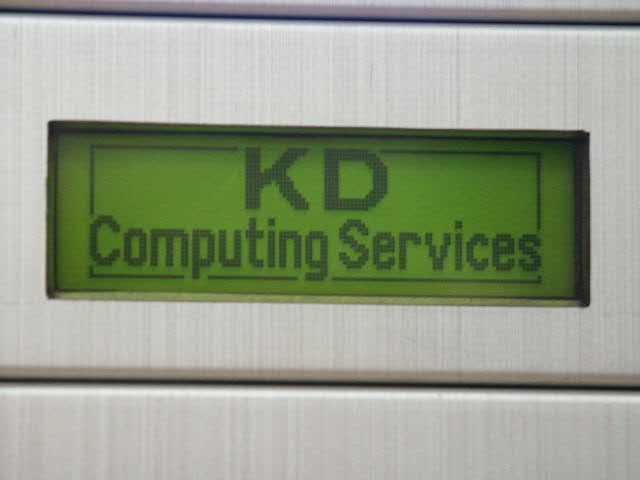

A couple of pics with the LCD in action:

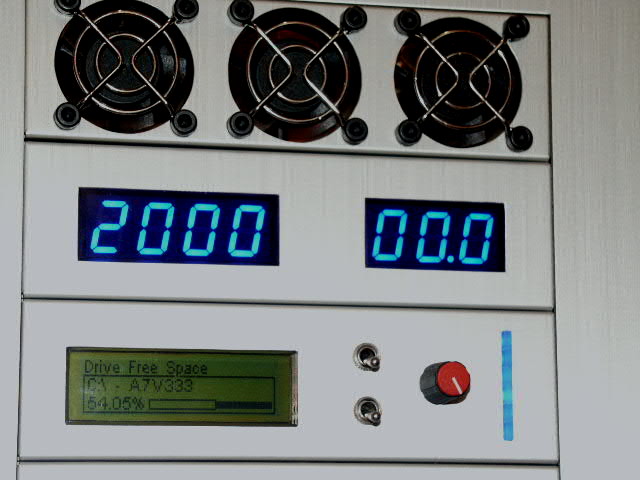

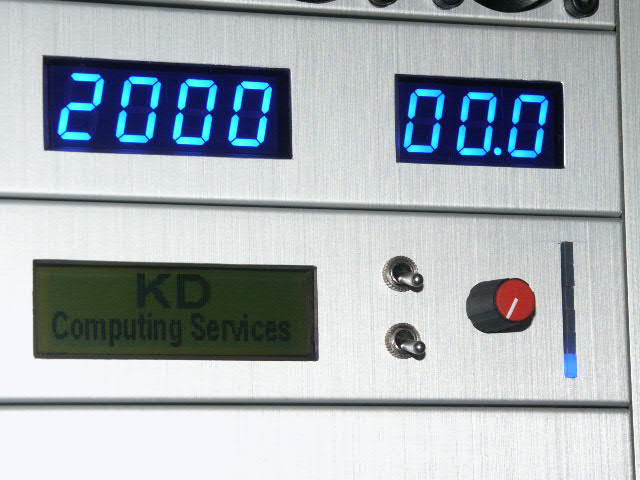

The original red LEDs of the voltage monitor are now replaced by the blue ones from Ledtronic.I have to say it's much better now...

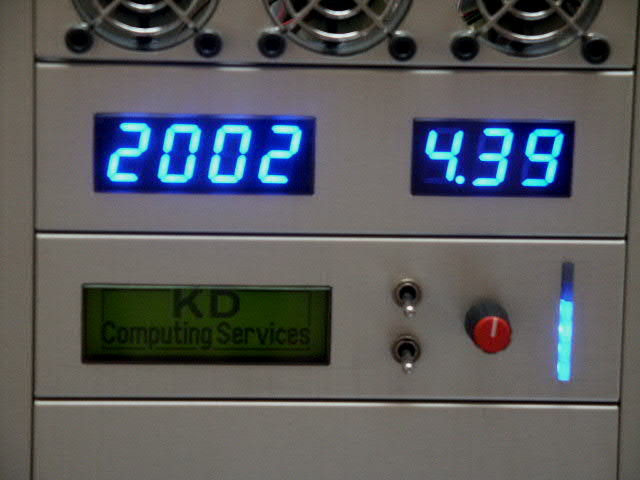

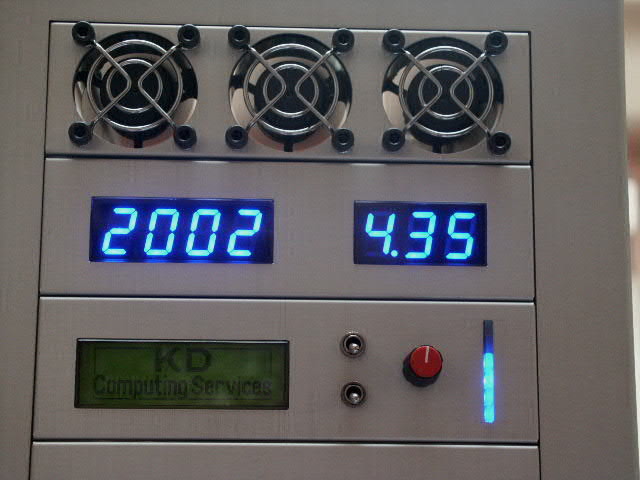

Flowmeter is working too. With a cold pump I measure 4.35 liters per minute, after a few minutes it stabilizes to 4.39 LPM.

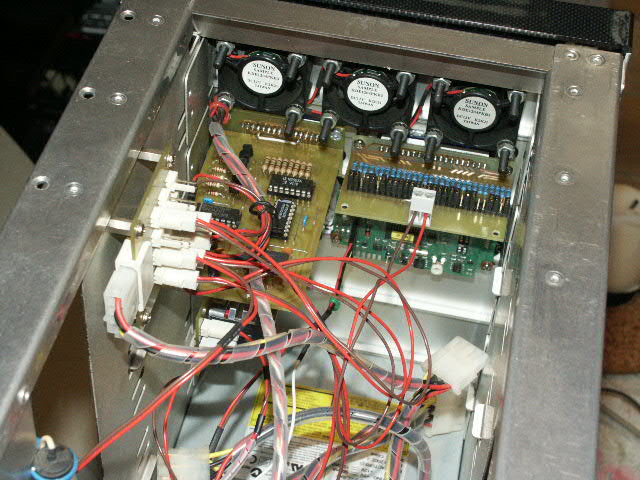

The cabling in the upper part after the frontpanel is rapidly "growing".
I'm glad now I made my "PSUbus", the little PCB on the left with a lot of +5 and +12V mini connectors...
